How to Create Map Views in Odoo 20

Technical Odoo 20 Views

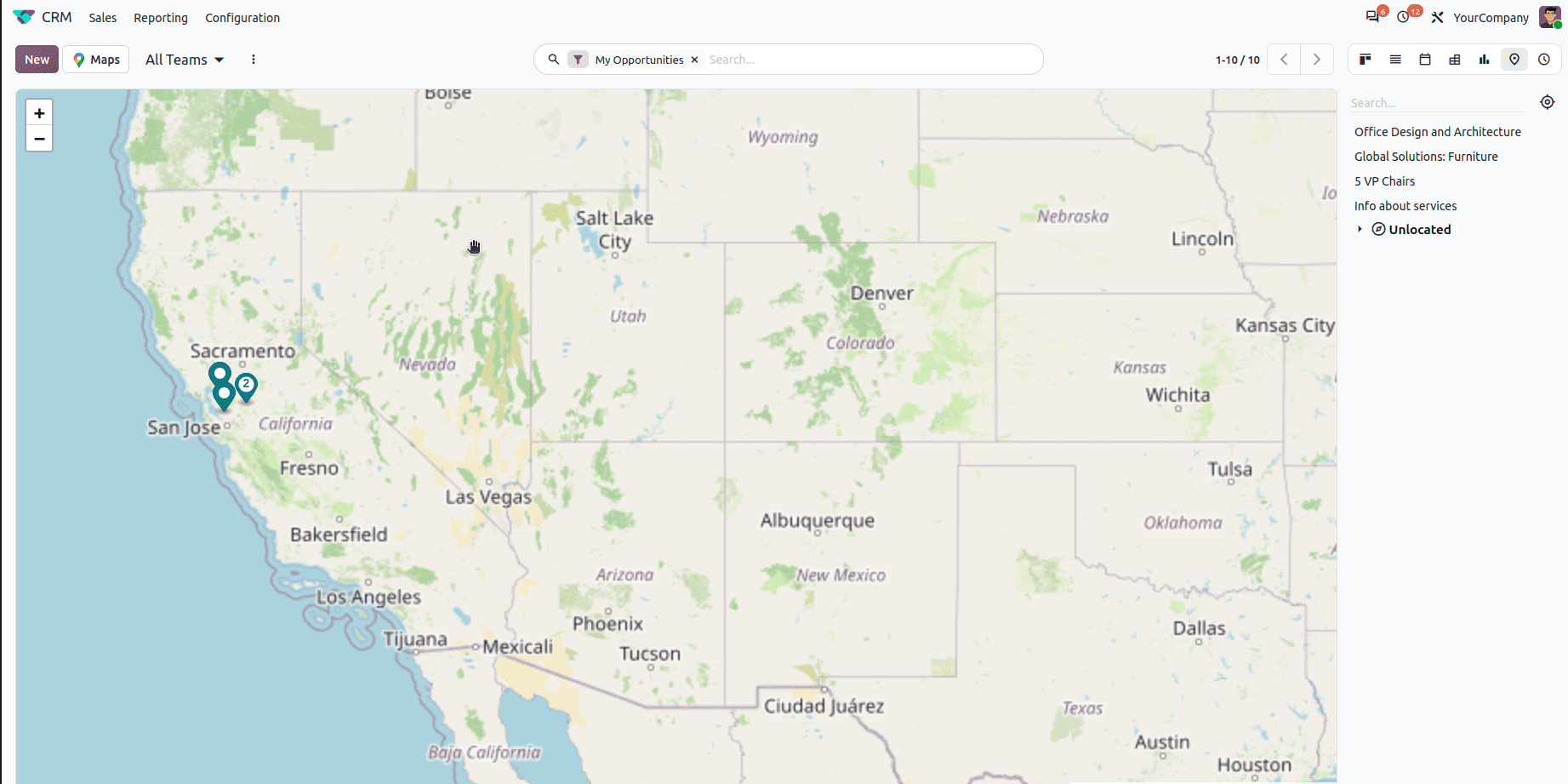

Odoo 20 Map Views provides an interactive way to visualize geographical data, including customer addresses, vendor locations, delivery points, warehouses, events, and service areas. In this blog, we’ll walk through the steps to configure and implement Map Views in Odoo 20 Enterprise Edition.

If your model has a relation with model res.partner or address fields like city, country, longitude, and latitude, the model records can be easily shown in map view.

Map view simplifies visualization of location based records and helps users to make better business decisions through appropriate geographical insights. It also creates interactive navigation and routing and provides a user-friendly interface.

Enabling Map View in Odoo 20

Step 1: Add Map View to Window Action

To enable Map View for a model in Odoo, add map to the view_mode field of the corresponding window action. This allows users to access the map alongside other views, such as list and form views, directly from the user interface.

<record id="action_crm_lead_enterprise" model="ir.actions.act_window">
   <field name="name">Leads</field>
   <field name="res_model">crm.lead</field>
   <field name="view_mode">list,form,map</field>
</record>

A user can also include a map view in an already existing window action by mentioning the window action ID.

<record id="action_crm_lead_map" model="ir.actions.act_window.view">
   <field name="act_window_id" ref="sale.action_crm_lead"/>
   <field name="view_mode">map</field>
   <field name="view_id" ref="crm.crm_lead_view_map"/>
</record>

Step 2: Define a Map View

Create a new record in the Views model as an xml file. Enclose the field name that is required to be displayed in the map view within the <map> tag.

<record id="crm_lead_view_map" model="ir.ui.view">
   <field name="name">crm.lead.view.map</field>
   <field name="model">crm.lead</field>
   <field name="arch" type="xml">
       <map js_class="crm_map" res_partner="partner_id" routing="true">
           <field name="partner_id" string="Customer"/>
       </map>
   </field>
</record>

The <map> tag controls how the records are displayed on the map.

Properties of Map View

res_partner - a Many2One relation with res.partner, Odoo displays map markers based on the address information associated with the related partner records. Suppose our model has a relation with res.partner via the field partner_id, mention the field name under res_partner.

<map res_partner='partner_id'>

routing - when routing is set to true, the map view will show the route between two locations.
default_order - sets how the records are sorted in the map view panel.
hide_name - if set to true, it hides the record names in the map view.
hide_title - hides the map title from the view.
hide_address - hides the address details in the pop-up.
panel_title - let users set a custom title in the map’s panel.

Odoo 20's Map Views provide a useful method to see geographic data. You may turn simple records into an interactive map experience by creating a Views model record with XML.

Map Views are definitely worthwhile if your application uses addresses, routes, or locations. Map Views enhance usability by making geographical data easier to visualize and understand. With the right configuration, you can integrate Map Views into your custom modules in Odoo 20 and present location-based records in a more interactive and meaningful way.

To read more about How to Create Map Views in Odoo 19, refer to our blog How to Create Map Views in Odoo 19.

Frequently Asked Questions

Is the Map View available in Odoo 20 Community Edition?

Map View is an Enterprise feature in Odoo 20. To use it within a custom module, make sure that the required map-view functionality is present in your Odoo installation and that your module has the necessary dependencies.

How can we display custom model records on a map in Odoo 20?

To display a model’s records on a map, define a map view for your custom model using the XML tag. For models with a Many2one relation to res.partner, use the res_partner attribute to define the related partner field. Also, make sure to add the map view in the corresponding window action using the view_mode field.

Can we enable routing between locations in Odoo 20 Map Views?

Yes. Currently, Odoo 20 allows routing between locations on a map view. Set the routing attribute to true to enable the routing feature and let users see the routes between the points. The actual implementation and routing availability depend on the map’s underlying implementation and services.

What is the purpose of the res_partner attribute in a Map View?

The res_partner attribute defines the Many2one field holding the related partners for the records in your model. Odoo can use this information to determine the address for displaying the records on the map. For instance, if your model’s field is called partner_id, you’d be able to use res_partner="partner_id".

Can we customize the information displayed in an Odoo 20 Map View?

Yes. Odoo offers various map-view attributes, such as hide_name , hide_title , hide_address , default_order , and panel_title . You can use them while defining the view to let users customize it according to their needs. These attributes let the developer customize the map panel, define which fields should be hidden, and set the default order of the records shown in the panel.

Why are records not appearing on the map in Odoo 20?

If the model’s records do not appear on the map, the reason might be that the partners do not have an address defined or that the map view uses an incorrect relational field. Check if the res_partner attribute refers to the correct Many2one field and if the related partner’s address is set. Also, double-check if the map view is properly added to the corresponding window action and if the required map-view dependencies are satisfied.
